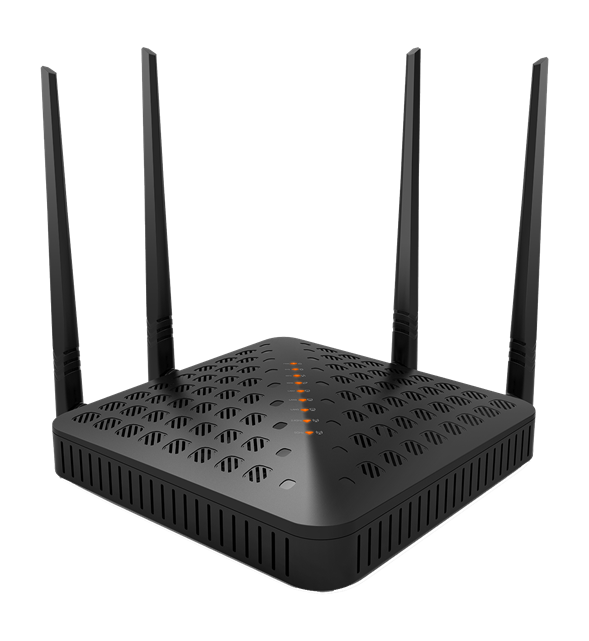

This article applies to the Universal Repeater Cosmos 1200.
NOTE: Your N Router is compatible with any Operating System for setup, it only requires an internet browser to access it. (IE, Mozilla, Firefox, Chrome, Safari, etc.).
Please try the following steps to change the LAN IP Address for your router.
1. Connect you Nexxt Router Cosmos 1200 to your computer with the Ethernet cable from the Ethernet port to the one of the following ports #1, #2, #3 in the Cosmos 1200. Is recommended port #1.

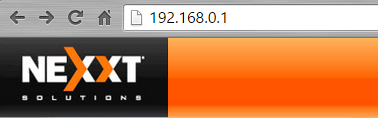

2. Open your default browser, type the IP address http://192.168.0.1 and press the keyboard "Enter" to access the main page of the router.
2. Open your default browser, type the IP address http://192.168.0.1 and press the keyboard "Enter" to access the main page of the router.

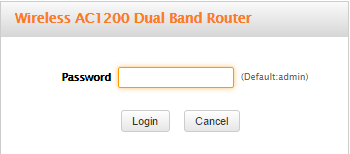

3. In the main page you will need the password. Please type in the password box “admin”.

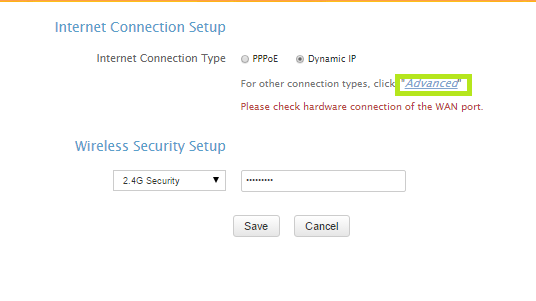

4. Hit “Advanced” so you can access the configuration page of your router.
In the picture Right click - Open image in new tab to see it in large scale.

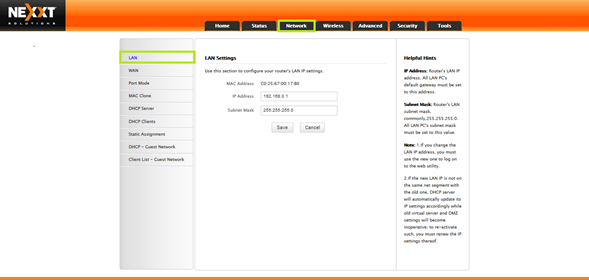

5. After selecting "Advanced" select the "Network" tab and then "LAN" from the list.
In the picture Right click - Open image in new tab to see it in large scale.
6. Here you will find two lines that you can edit, "IP Address: 192.168.0.1" and "Subnet Mask: 255.255.255.0"
6. Here you will find two lines that you can edit, "IP Address: 192.168.0.1" and "Subnet Mask: 255.255.255.0"
In the picture Right click - Open image in new tab to see it in large scale.

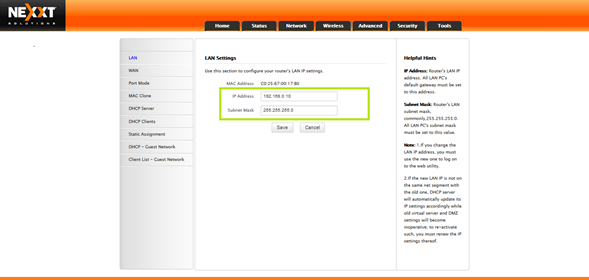

7. Proceed to change the IP Address you need in the fields. In our case we change from 192.168.0.1 to 192.168.0.10 Hit "OK" and the process will be complete.
7. Proceed to change the IP Address you need in the fields. In our case we change from 192.168.0.1 to 192.168.0.10 Hit "OK" and the process will be complete.
In the picture Right click - Open image in new tab to see it in large scale.
