What is "U" on my Rack Unit?

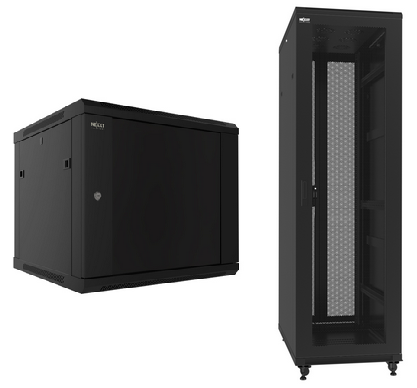

The following article will provide basic knowledge about our Racks/Cabinets

To find more information about our products, please visit our website: www.nexxtsolutions.com/infrastructure
What does 1U, 2U, 3U, 6U, 9U, 12U, 15U means:

A "U" or Rack Unit is a measurement of the height of a piece of computer or network gear that is designed to fit into a standard 19" or 23" rack. A single rack unit is exactly 1.75" (44.45 mm) in height.

When a piece of equipment is designed to be larger than a single rack unit (1U), it will be referred to as multiple of rack units and written such as 2U, or 6U. For this example, will mean a server of 6U is 10.5" or 266.7 mm in height.

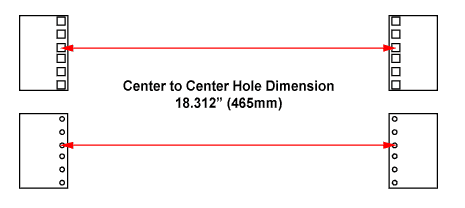

Horizontal Spacing:
Horizontal spacing of a rack units depend on whether the holes are drilled and tapped in the rack, versus the use of cage nuts.


Vertical Spacing:
Vertical spacing of rack units is defined by EIA-310 as 18 5/16" or 465.1 mm.


Note: Please, make sure to read the specs' information of the product.
